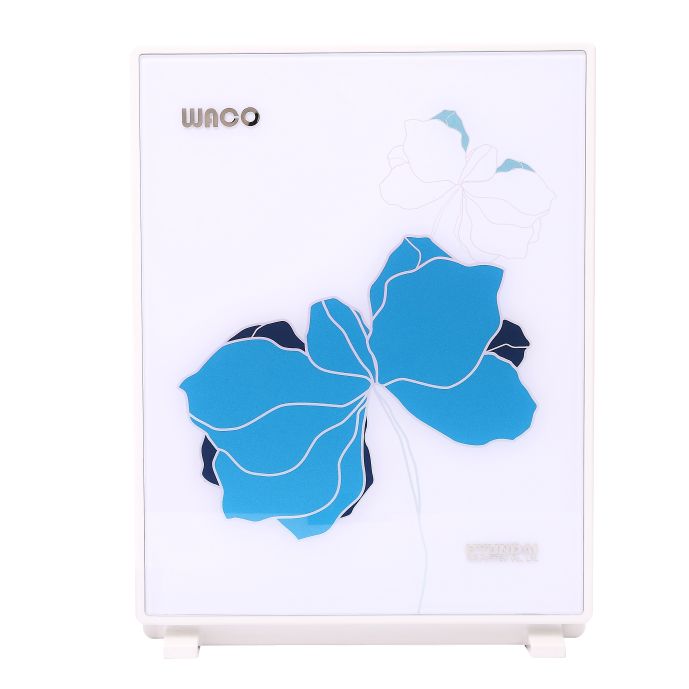

HW-UP300 Series
Tankless RO System
Sediment Filter + Pre Carbon Filter + RO Membrane Filter + Post Carbon Filter + TCR Filter + RO Pump
Features of HW-UP 300 Series
♦ Tankless Reverse Osmosis System
♦ Undersink type & Onsink type (Counter top)
♦ Use of RO 300 GPD Filter
* Average Flow Rate (GPD): 300 GPD
* Improving the TDS (Total Dissolved Solids) rejection (Rejection Rate: 97%)
* Meet all different water quality needs.
♦ With booster pump (Motor)
* Using the high quality booster pump that can provide 100-120psi water pressure to pass through the membrane even with areas under low water pressure.
♦ Basic permeate rate
* Inlet water pressure: 3kgf/cm²- Flow rate: 120LPH / Capacity of treated water: 300 GPD
♦ Specification
- Dimension: 325x180x430mm (WxDxH)
- Weight: 10.5kgs
Specification of parts
RO 300GPD
* Operation pressure (psi): 65psi
* Average Flow Rate (GPD): 300 GPD
* Rejection Rate (%): 97%
* Recover Rate (%): 10%
♦ HIGH quality PUMP
- VOLTS: DC24V - INLET PRESSURE: 15~90psi - OPEN FLOW: 2.1LPM
- AMPS: 2.1A - WORKING PRESSURE: 82±8psi - SUCTION HEIGHT: 2M
- PRESSURE SETTING: BYPASS 125psi
